Colon Therapy Apparatus

The package size is 1950x780x1000mm 500 small liquid injection pipes (consumables) per box, and the package size is 430x320x350mm The host is small and the consumables are small. a. Parameters
Voltage inlet 220V±10% Frequency inlet 50±1Hz Power inlet <2KVA
Water pressure
inlet
（0.15～
0.45）MPa
Working water
pressure
（5～15）KPa
Working water
flow rate
（0～60）L/h
Working water temperature 36℃±1.5℃ Safety ClassⅠType B
b. Functions
Functions Descriptions Notes
1. Auto-control and display of
water temperature and pressure
Deviation: temperature ±1.5℃,
pressure 1Kpa.
Monitor water temperature and
pressure in real time.
2.Constant water temperature
Set the temperature and it will remain
constant.
Suggested temperature 36℃-38℃.
3.Mutiple safety protection
a) Temperature: low/ high/ dry
protection. b) Pressure: dual
protection to control the pressure
within the safe range c) Electrics: 24V
control circuit, ground connection,
leakage protection d) Low water
protection.
If the set temperature is 37℃, then
less than 35.5℃ is regarded as low
temperature, and more than 38.5℃
is high temperature, in which case
the device will stop water supply. If
the temperature is 40℃+1.5℃,
power supply will be cut off.
2
4.High/Low water pressure
injection
High pressure injection allows for a
deeper cleansing effect, while low
pressure injection is more suitable for
first-timers.
Injection mode should be chosen
according to the severity of
constipation.
5. Alarm and auto-processing
In face of problems in temperature, pressure and so on, the alarm will be
triggered and the device will react to the problems automatically.
6. Machatronics
Built-in water heating and filtration
systems.
Cellucotton and activated charcoal
are used for filtration, and UV is
used for sterilization.
7. Built-in timer
The therapy time is displayed and there is a music alert at the end of the
therapy.
8. Medical / Ozone treatment
(optional)
External medical/ ozone treatment device could be connected via provided
ports and control system.
9. Handy control panels
Control panels includes Injection/stop,
Flush and Call for assistance buttons.
Clients can start / stop water
injection and call for help by using
the control panel next to them.
10. Swan-shaped design
(patented)
The elegantly designed shell is made of durable high strength FRP.
11. Ergonomic bed (patented)
The bed is designed to meet the
need of clients who might prefer
different postures.
It allows postures such as legs-up,
legs-down, squat and sitting.
12. Injection tube with
sphere-shaped end (patented)
The injection tube is 0.8cm in diameter, and its insertion depth is 5cm. The
sphere-shaped end makes the insertion process easy and comfortable.
13. Protection lid The protection lid above the injection poet can prevent contamination.
14.Deep toilet bowl
The deep toilet bowl below the bed can prevent contamination caused by
bounced back fecal matter.
15.High-elastic PU mattress The mattress is made of high-quality PU, which is water-proof and durable.
16.LED Screen HD 19 inches LED screen
USB and TV input interface allow for
the display of videos. Meanwhile, it can
monitor the fecal matter in real time.
17. Sewage Pipelined sewage and exhaust system can prevent odors.
18.Flushing Flush out fecal matter from the toilet bowl via the sewage.
3
19.Sprayer A retracted sprayer for cleaning.

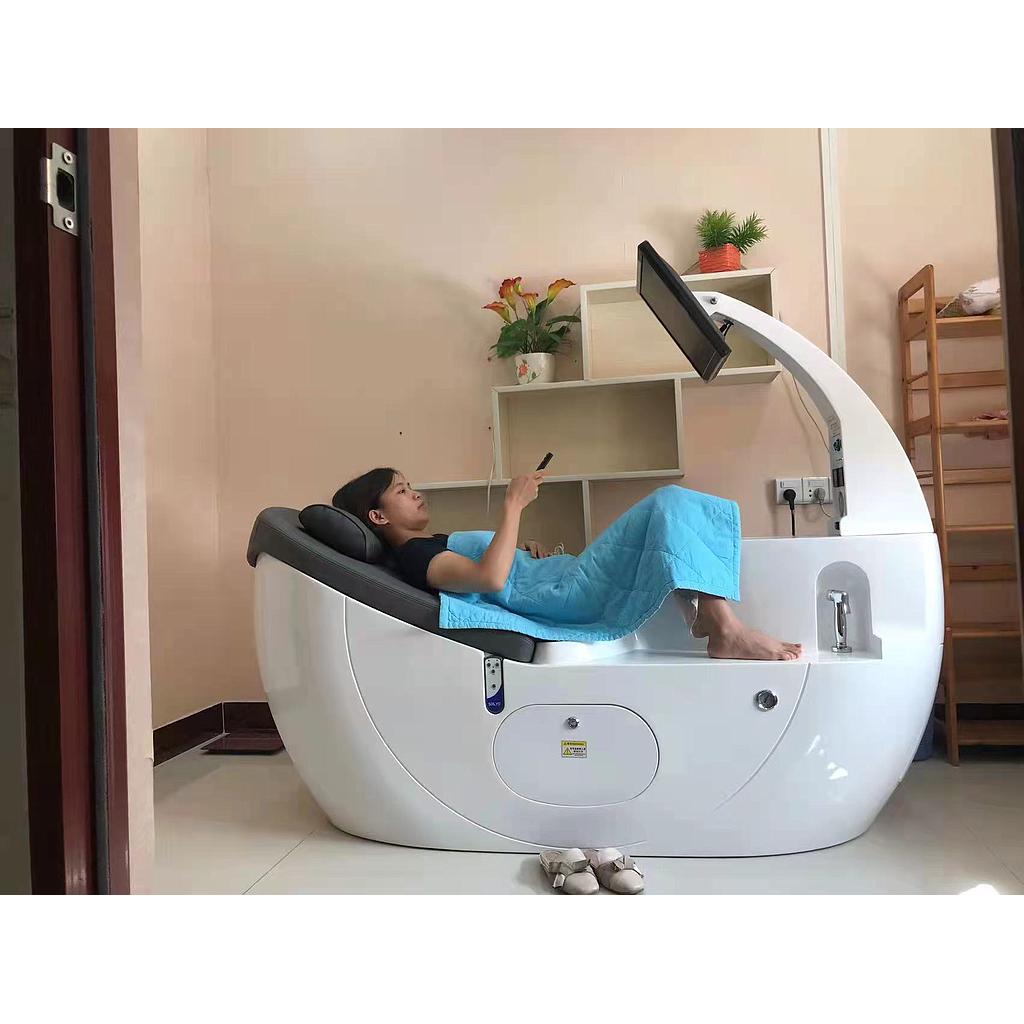

Dedicated in colon hydrotherapy for 18 years, Foshan Kangyuda Medical Device CO, LTD proudly presents KYD-238C2 Colon
Hydrotherapy Device. It offers multiple protections to guarantee safety, provides scientific water pressure control to ensure
efficient cleansing, and incorporates novel ergonomic design to improve customer experience, making it stand out for its
reliability and functionality
